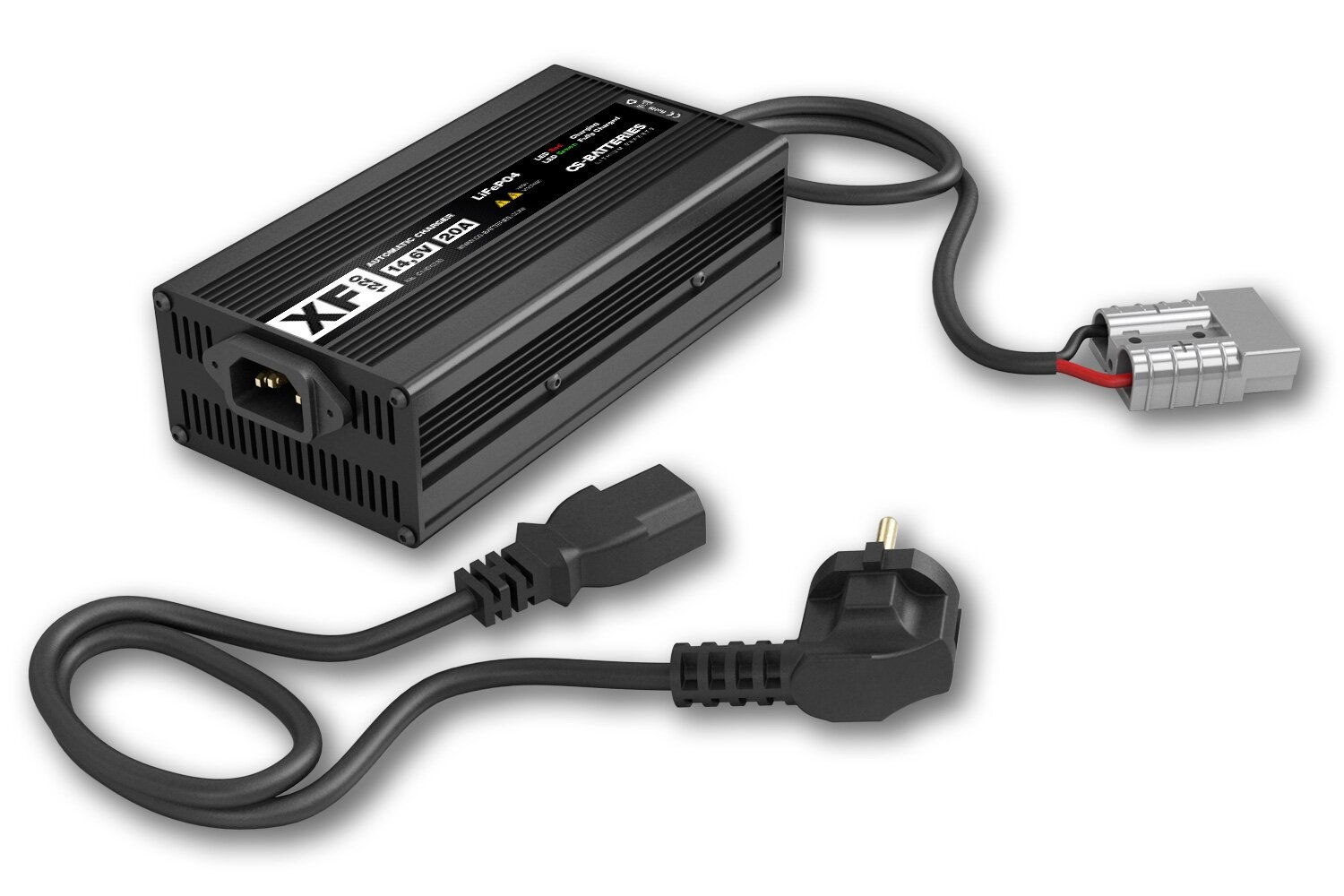

CS-ELECTRONIC XF1220 automatic LiFePO4 12V / 20A charger in metal housing -480W-

12V 20A Professional LiFePO4 lithium automatic charger


The new automatic LiFePO4 lithium battery charger XF1220 from CS-Electronic was specially developed for the safe and easy charging of the new 12V lithium iron phosphate (LiFePO4) batteries.

The focus was on simple and safe handling. The microprocessor-controlled LiFePO4 charger analyzes the connected 13.2V lithium battery and charges it fully in a targeted and safe manner. The charger automatically switches off completely after it has been fully charged.


Features:
Automatic charging start when the battery is connected
20A charging power
Microprocessor-controlled LiFePO4 charging program CC / CV = constant current phase / constant voltage phase
Safe charging with shutdown at the end of charging!
No  charge retention!
No  desulphation!
No  pulsation!
Easiest to use, just plug it in
Increases the life of your LiFePO4 battery
Multi-protection with overload, overvoltage and reverse polarity protection
0.5m charging cable with SB50 Anderson plug gray (battery adapter cable CS100151 optionally available)
Only charges CS-LiFePO4 lithium iron phosphate batteries with 12V (13.2V / 4S)


Technical data:
Mains voltage: 200-240V, 50-60Hz Current
consumption: 4.5A Charging
current: 20.0A Charging
power: 480W Number of
cells LiFe: 4 cells / 4S
End-of-charge voltage: 14.6V
Charging method: CC / CV Charge
control: Red LED = charging, green LED = fully charged
Cooling: Fan
Battery connection: 0.5m connection cable with Anderson SB50 gray
Use: Use only in dry rooms
Weight: 920g
Dimensions: 190 x 90 x 50mm

Use:
For lithium LiFePO4 batteries in the motorhome Scope of

delivery:
- XF1220 automatic LiFePO4 charger
- Including 0.5m connection cable with SB50 gray plug
- 230V power cable
