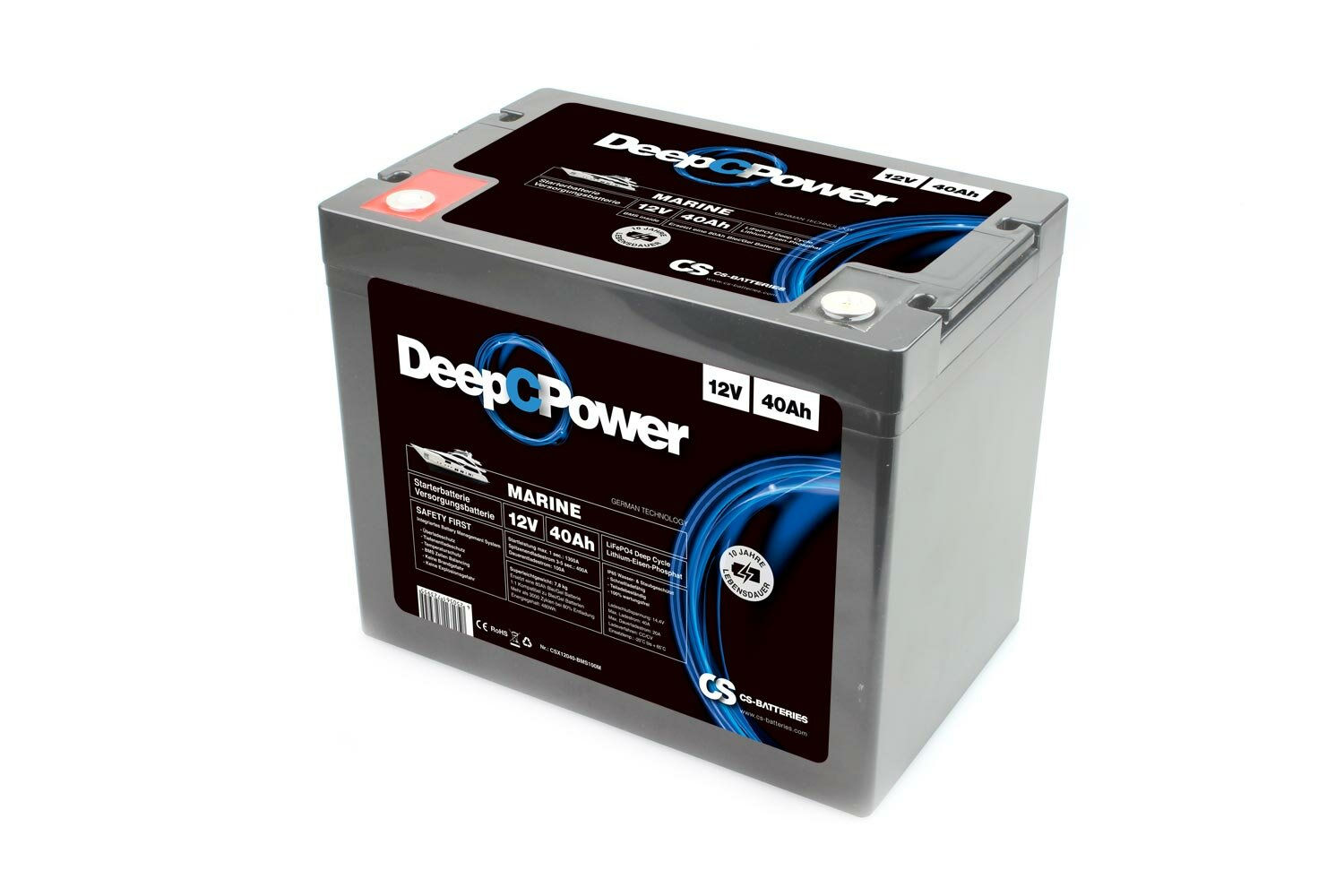

Lithium LiFePO4 marine / boat battery 12V / 40Ah
New 40Ah lithium battery as a full-fledged lead battery replacement for your boat,
as a supply or electric drive battery !The CS-Electronic DeepC-Power LiFePO4 battery is a rechargeable lithium iron phosphate battery with a built-in battery management system (BMS) specially designed for boats or power drives. With the new lithium-iron technology, you can quickly and easily replace your previous lead, gel, or AGM battery for the first time.
The ultra-light DeepC-Power battery can be used as a pure supply or drive battery and can be loaded up to 400A for a short time. The significantly lower weight, the long operational reliability, the long service life and the long service life are decisive advantages over conventional batteries of old technology.
Features:
- High current resistant
- Replaces a 12V / 80Ah lead battery
- Built-in BMS
- Very light weight
- Fast charging
- NEW: Optimized software for parallel connection with large battery banks
- NEW: "Alternator-Protected" no additional electronics necessary to protect the Lima
- NEW: including battery pole adapter - corrugated & nickel-plated-
- High intrinsic safety, LiFePO4 cannot burn!
- Can be used in all positions
- Temperature stable
- Over 3000 cycles at 90% discharge
- Lifespan up to 10-20 years
- 100% maintenance free
- Environmentally friendly, no lead, no acid
- Recyclable!
From the family of lithium-ion battery types, the lithium-iron-phosphate battery (LiFePO4) is the safest. It is high current resistant, universally applicable and has a low weight compared to lead, gel or AGM batteries. In addition, the latest lithium-iron technology offers a high degree of intrinsic safety, so that there is no risk of explosion even under the most extreme conditions. A 12.8V LiFePO4 battery consists of 4 single cells connected in series, each with a nominal voltage of 3.2V. A built-in battery management system (BMS) also reliably protects the battery cells from damage.
Advantages of our LiFePO4 DeepC-Power battery compared to lead batteries:
- High discharge currents up to the specified capacity are possible
- Due to the up to 60% lower weight, more payload is possible
- Due to the smaller space requirement, more capacity can be carried in the same space
- Up to 10 times longer service life thanks to the high number of cycles of the LiFePO4 technology
- Extremely fast charging of the cells possible
- Complete discharge of the specified nominal capacity possible
- The battery is protected by a Battery Management (BMS)
- The motorhome is charged using common lead or acid chargers with an end-of-charge voltage of 14.6V
- The battery is winter-proof and does not have to be removed down to -20 ° C
- Delivered fully charged, install it and drive off
- As standard, the battery has M8 screw connections, which can optionally be equipped with our extra light pole adapters
- No changes to the motorhome or additional electronics are required to use the battery
- Due to the low self-discharge, a closed battery can be stored for up to 6 months without any problems
- You can connect any number of batteries in parallel for more capacity
- For more voltage you can connect up to 4 batteries (maximum 48V) in series
Battery Management System (BMS)
A battery management system monitors and controls the individual cells of a battery and protects them from damage.
Important functions of a battery management system:
- Overload protection
- Deep discharge protection
- Overvoltage protection
- Active cell balancing
- Charge monitoring and control
- Temperature protection of the cells
- BMS temperature protection
- Short circuit protection
Certificates:
CE: General operational safety
UN38.3: Tested transport safety in traffic
RoHS: Tested material safety
Guarantee: 5 years manufacturer guarantee
Specs:
Technical data:
Model:CSX12040-BMS100M
Type: Drivebattery, supplybattery Nominal
capacity:40Ah
Energy content:512 Wh
Cell technology:Lithium iron -Nanophosphate LiFePO4
cell type:Big-Capacity-PrismaticCells (BCC)
Replaces one:120Ah lead-gel battery
Application:12V installations, electric drives, solar
Application in parallel connection: Yes, any number of the same type possible
Application in series connection: Yes, 24V, 36V and a maximum of 48V possible
Operating voltage: 9.2 - 14.4V Nominal
voltage: 12.8V Service
life: = 10 years
cycle time at 50% DoD : = 5000
cycle duration at 80% DoD: = 3500
cycle duration at 90% DoD: = 3000
charging programs: CCCV / IU / IUoU End-of-
charge voltage: 14.6V
Maximum charging current: 40A / 1C
Maximum continuous charging current : 20A / 0.5C
charging current for maximum service life : 13A / 0.33C
continuous discharge current:200A
peak discharge current (3-5 sec.): 400A
Maximum inverter power: up to 2560W End-of-
discharge voltage: 9.2V
Temperature range (discharge): -20 ° C to + 65 ° C
Temperature range (charge): 0 ° C to + 50 ° C
Temperature range ( Storage): -20 ° C to + 65 ° C
Battery Management System (BMS): Yes, built-in
Balancer: Yes, active balancer
Self-discharge: 1-2% / month
Installation position: any
Connection: M8 screw or cone
NEW: Protection class : IP67 water & dust proof
Weight: 6.1kg
Dimensions (WxDxH): 260 x 170 x 220 mm
NEW: Manufacturer Warranty: 5 years
Recommended for:
supply battery
power battery for outboard
delivery:
1 x LiFePO4 DeepC-Power Battery
1 x battery pole adapter / battery terminals / screw terminals M8 -geriffelt with screw locking & vernickelt-
1 x Operating instructions
Low weight, easy handling, reliability and long service life!
